ASRock 1xSKT AM4, AMD Ryzen, X570, SATA, 1xM.2, 2x10GbE, IPMI

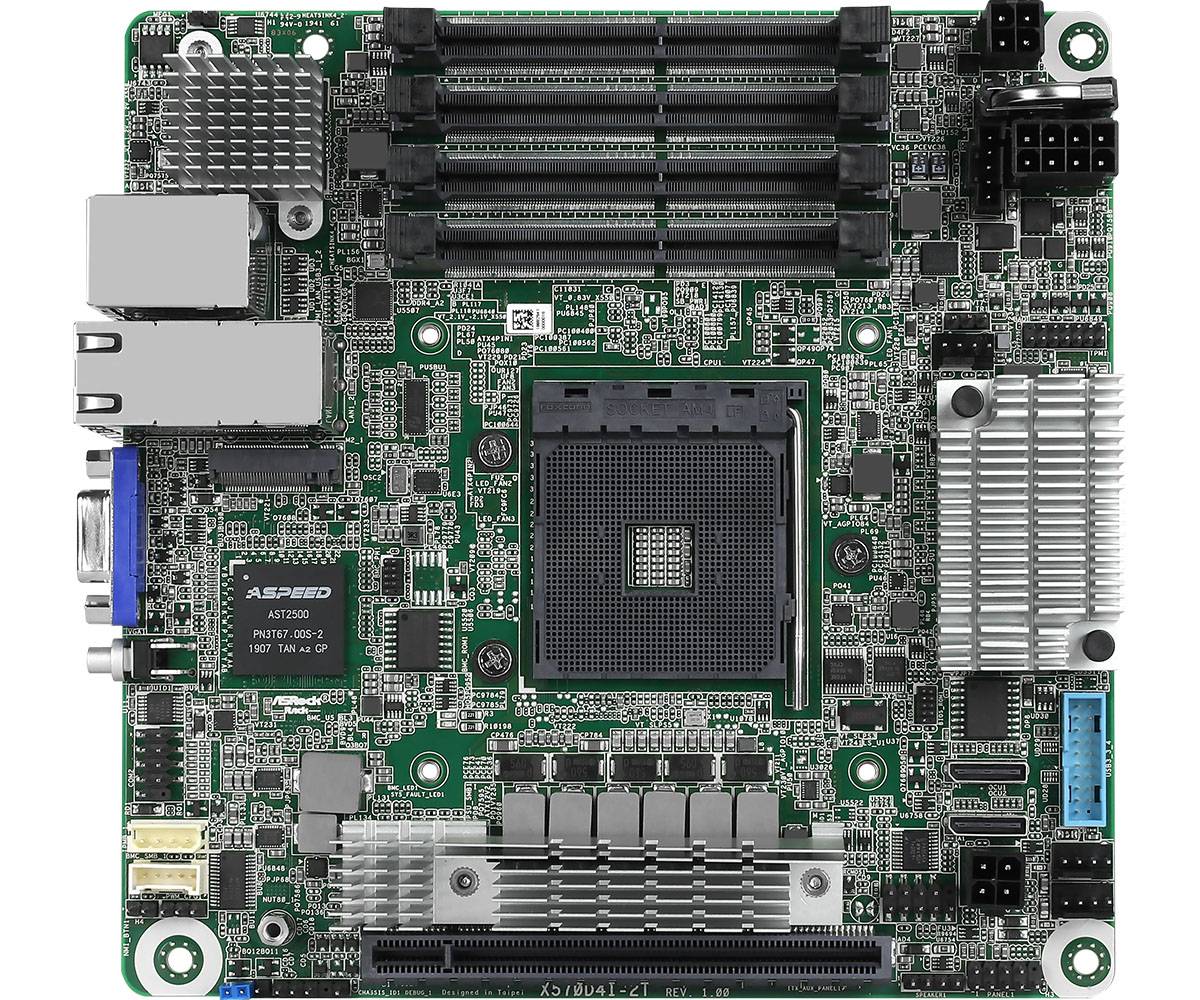

ASRock X570D4I-2T, 1xSKT AM4, AMD Ryzen, X570, SATA, 1xM.2, 2x10GbE, IPMI

• Supports AMD Ryzen™ 3rd Generation Series Processors(Max 105W))
• Supports 4x DDR4 ECC and non-ECC SO DIMM, total DIMM size 128GB
• Supports up 8 x SATA3 by OCulink and 1x M.2 ports
• Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
• Supports 1x PCIe Gen4x16 link (Matisse)
• Supports 2x 10GLAN Intel X550-AT2



Specifications

Physical Status
Form Factor	mini-ITX
Dimensions	6.7x 6.7 Inch (17.02 cm x17.02 cm)
Processor System
CPU	AMD Ryzen™ 3rd Generation Series Processors(Max 105W) *We recommend using the CPU HS listed in the Cooler QVL section on our ASRock Rack website
Socket	AM4 PGA 1331
Chipset	AMD Premium X570
System Memory
Capacity	4x DDR4 SO DIMM slots
Type	Dual Channel DDR4 memory technology, Support DDR4 ECC & non-ECC SO DIMM Supports DDR4 ECC/UDIMM,up to 2933MHz :One DIMM 1R DIMM @2933MT/s; 2R/2DR DIMM@2400T/s :Two DIMMs (2) 1R DIMM @2400 MT/s; (2) 2R/2DR DIMM@2400MT/s; Max per DIMM size is: 32 GB *Conditionally support ECC error reporting function
Voltage	1.2V
Expansion Slot
PCIe 4.0 x 16	PCIE7: Gen4x16 link (Matisse)* *When use Picasso CPU, only PCIe3.0 x8
Storage
SATA Controller	AMD X570:8 x SATA3 by OCulink
M.2 slot	1 (2280, supports PCIe 4.0 x4/SATA3 6.0Gb/s)* *When use Picasso CPU, only PCIe3.0 x4
Ethernet
Interface	10000/1000 /100 /10 Mbps
LAN Controller	2x RJ45 10GLAN by Intel® X550-AT2 Supports Wake-On-LAN Supports Energy Efficient Ethernet 802.3az Supports Dual LAN with Teaming function Supports PXE
Management
BMC Controller	ASPEED AST2500
IPMI Dedicated GLAN	1x Realtek RTL8211E for dedicated management GLAN
Features	Watch Dog
Graphics
Controller	ASPEED AST2500
VRAM	DDR4 16MB
Rear Panel I/O
VGA Port	1x D-Sub
USB 3.2 Gen2 Port	2(Gen2)
Lan Port	RJ45:2+1(IPMI) LAN Ports with LED (ACT/LINK LED and SPEED LED)
UID Button/UID LED	1
Internal Connector
COM Header	1
SATA DOM	0
M.2	1(M-key,only 2280, Support PCIe 4.0 x4 or SATA3 6.0Gb/s) *When use Picasso CPU, only PCIe3.0 x4
OCuLink	2(4xSATA3 6.0Gb/s/PCIe 4.0x4 for each) *When use Picasso CPU, only PCIe3.0 x4
Auxiliary Panel Header	1 (include Caseopen,sys_fault_LED, 2FLANLED) )
TPM Header	1(13pin)
IPMB Header	1
Buzzer	N/A
Fan Header	3(4-pin Fan header)
USB 3.2 (Gen1) Header	1 (support 2 USB 3.0)
USB 2.0 Header	N/A
Front Panel	1 (RST, PWRBTN, HDDLED, PWRLED)
Speaker Header	1(4pin)
SMBUS from BMC	1
Power Connector	8pin(DC-IN)+4pin(ATX)+4pin(HDD PWR)
ME/SPS Recovery	N/A
Clear CMOS	1
PSU SMB Header	1
Onboard LED
80 Debug Port LED	N/A
Fan Fail LED	3
System BIOS
BIOS Type	32MB AMI UEFI Legal BIOS
BIOS Features	Plug and Play (PnP) ACPI 2.0 Compliance Wake Up Events SMBIOS 2.8.0 Support ASRock Rack Instant Flash
Hardware Monitor
Temperature	CPU/DDR temperature sensing MB/Card side temperature sensing
Fan	Fan Tachometer Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control
Voltage	Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,1.05V_PCH, +BAT, 3VSB, 5VSB
Environment
Temperature	Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Voltage	Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,1.05V_PCH, +BAT, 3VSB, 5VSB
Support OS
OS	:Microsoft® Windows Windows® 10 (64 bit) :Linux UBuntu 16.04.4 (64 bit) RedHat Enterprise Linux Server 7.3 (64bit) / 7.4 (64bit) * Please refer to our website for the latest OS support list * On Linux system doesn't support Raid mode * Support UEFI BOOT only
Environment
Temperature	Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
