Teltonika TSW114 Gigabit Din Rail Switch

Product description

Teltonika TSW114 is an affordable way to simplify your connectivity with its plug and play nature and 5 x Gigabit Ethernet ports that
provide stable and reliable connectivity for high-bandwidth solutions.

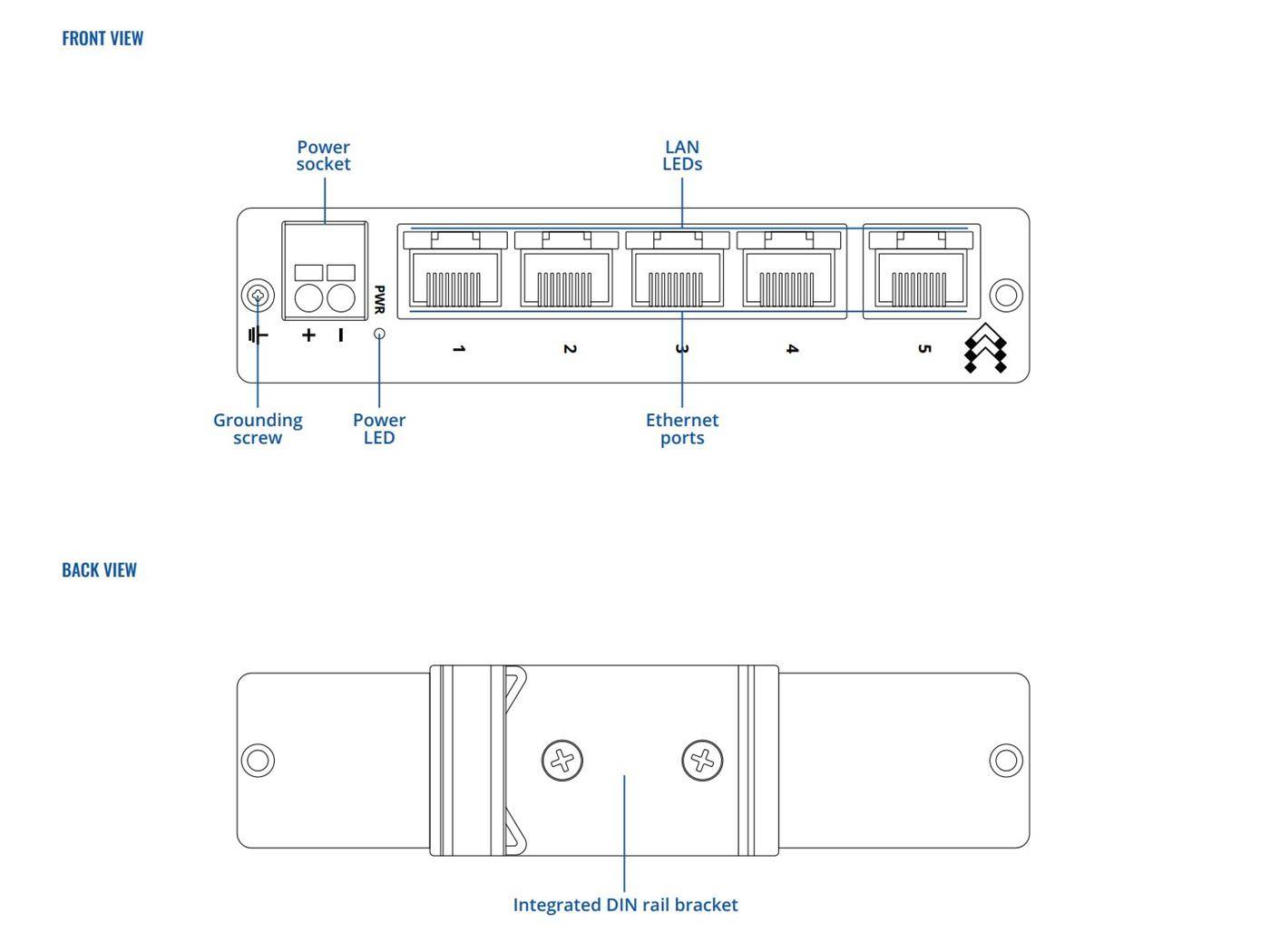

The switch has front-facing ports and an integrated DIN rail bracket to enable easy installation across many
industrial environments - especially control cabinets.

EASY MOUNTING

Integrated DIN rail bracket and front-facing ports

GIGABIT ETHERNET

5 x Gigabit Ethernet ports with speeds of up to 1000 Mbps

COMPACT & DURABLE

Rugged anodized aluminum housing that fits in your pocket

PLUG AND PLAY

No additional configuration needed

Package Contains

• Device
• QSG (Quick Start Guide)




  Technical parameters

  Connectors and Interfaces

  LAN speed : (5) 10/100/1000Mbps

  Gigabit LAN : Yes

  Power

  Power type : DC connector

  Max. power consumption [W] : 2,3

  Power via connector/terminal : 9 .. 30V DC

  Physical characteristics

  Protection class : IP30

  Design : DIN rail

  Fans : No

  Chassis design : Metal

  Operating temperature [°C] : -40 up to 75

  Weight [g] : 174

  Width [mm] : 113

  Height [mm] : 28

  Depth [mm] : 81

  General

  Switchning capacity [Gbps] : 10

  MAC address table : 2000

  Jumbo frame [Bytes] : 9216
