Teltonika RUTX14 4G LTE CAT12 Industrial Cellular Router

Product description

The Teltonika RUTX14 device ranks among very fast LTE routers. It includes a 5× Gigabit Ethernet port and
supports dual-band Wi-Fi 802.11ac Wave-2, Bluetooth LE.
There is also a USB interface, dual SIM card slots for advanced data throughput and an extremely reliable connection.
It is also equipped with advanced security features, such as VPN, firewall or cyber attack prevention technology.
With a combination of fast LTE CAT12 connectivity, a wide range of physical interfaces, extensive RutOS features
and great remote management capabilities, this device is an excellent choice for primary or backup connectivity.

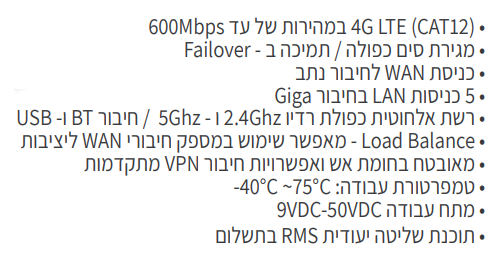

Key Features

• Powerful LTE router (4G (LTE) - Cat 12 up to 600 Mbps, 3G - up to 42 Mbps)
• Supports positioning via GPS, GLONASS, BeiDou, Galileo and QZSS
• Interfaces : 5× Gigabit Ethernet port (1× WAN (can be configured as LAN), 4× LAN), dual-band Wi-Fi 802.11ac
  Wave-2 (up to 150 client connections), Bluetooth LE, USB, 2× SIM slots (Mini SIM - 2FF), 1× digital in/out,
  4× SMA for LTE, 2× RP-SMA for WiFi, 1× RP-SMA for Bluetooth, 1× SMA for GNNS

Package Contains

• Device
• 24 W PSU
• 4 x LTE antennas (swivel, SMA male)
• 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
• 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
• 1 x Bluetooth antenna (magnetic mount, RP-SMA male, 1.5 m cable)
• Ethernet cable (1.5 m)
• SIM Adapter kit
• QSG (Quick Start Guide)




  Technical parameters

  Wireless features

  Wireless frequency : 2.4 + 5 GHz (dual band)

  WiFi standards : 802.11n, 802.11b/g, 802.11ac - wave2

  Transmission speed - 5GHz [Mb/s] : 866

  Transmission speed - 2.4GHz [Mb/s] : 300

  2.4GHz MIMO : 2 x 2

  5GHz MIMO : 2 x 2

  Connectors and Interfaces

  RF connectors : 4 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNNS

  LAN speed : (5) 10/100/1000Mbps

  SIM slot : Yes

  SIM slots quantity : 2

  USB : Yes

  GPS modul : Yes

  Power

  Power over Ethernet : Yes

  Power type : DC connector

  Max. power consumption [W] : 22

  Power via connector/terminal : 9 .. 50V DC

  Physical characteristics

  Material : Aluminum alloy

  Buttons : Reset

  Operating temperature [°C] : -40 up to 75

  Weight [g] : 515

  Width [mm] : 132

  Height [mm] : 44

  Depth [mm] : 95

  Hardware

  CPU : ARM Cortex A7

  CPU frequency [MHz] : 717

  Internal storage [MB] : 256

  RAM [MB] : 256

  Software

  Operating system : RutOS (OpenWrt based Linux OS)

  Default IP address : 192.168.1.1

  Default login and password : admin / admin01
