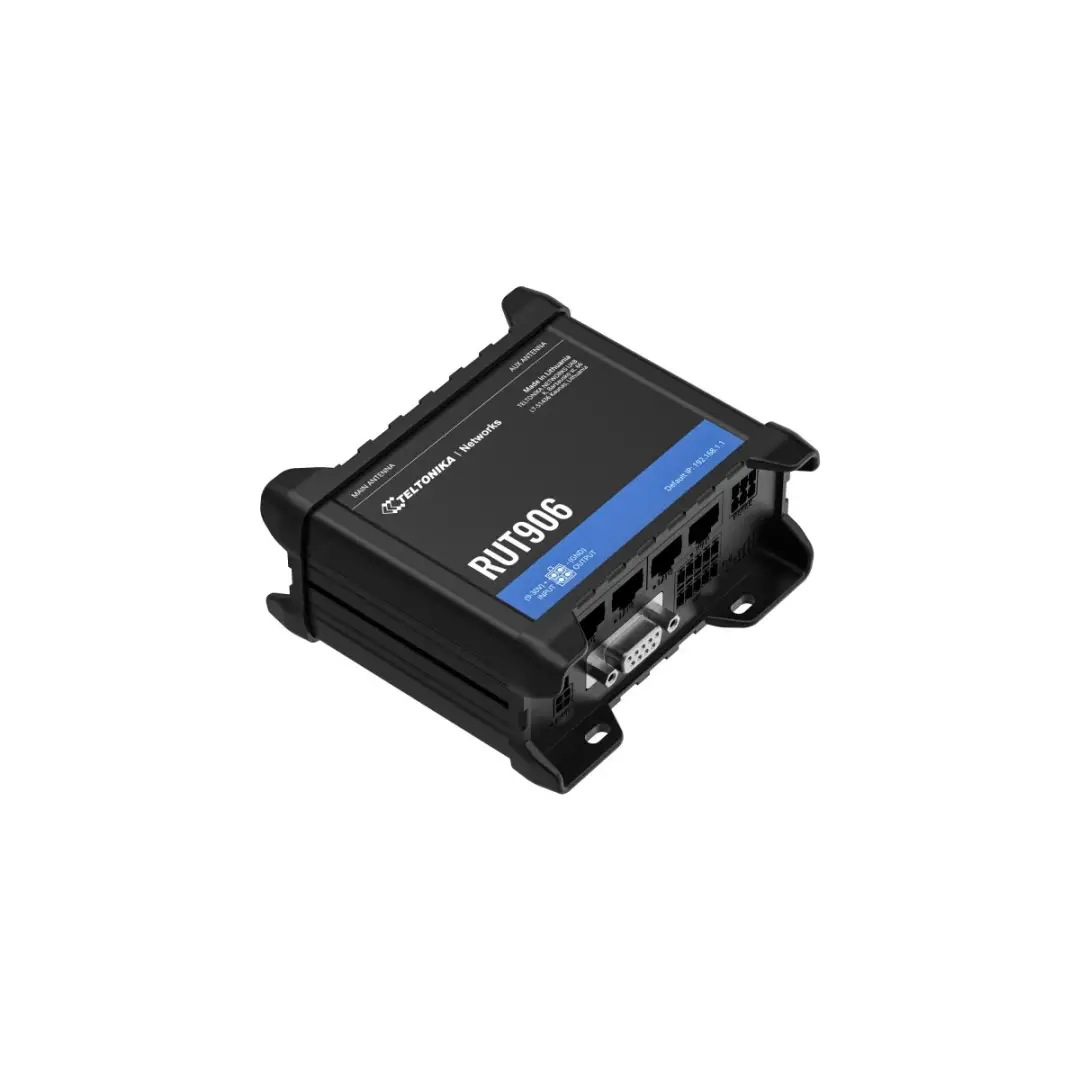

Teltonika RUT906 4G LTE RS232/RS485 Router

Product description

RUT956 is a robust and durable industrial 4G / LTE Dual SIM router with Wi-Fi and Ethernet support.
Quick deployment, easy management, and flexibility for applications across the most demanding market sectors.

The router is equipped with four ethernet ports, two SIM slots, RS232/RS485, digital I/O, and LED signal strength indicators.
Support for GNSS system is also included. SMA connectors for connecting external antennas allow for better received signal strength.

Advanced RutOS operating system, a universal operating system for Teltonika routers designed for the most demanding network applications.
Device management is possible via the cloud service RMS - Remote Management System.

Package Contents

• Device
• Power adapter
• (2) LTE antennas (SMA-male)
• (2) Wi-Fi antennas (RSMA-male)
• GNSS antenna (SMA-male)
• RS485 connector block
• I/O connector block
• SIM adapter kit
• Patch cable




  Technical parameters

  Wireless features

  Wireless frequency : 2.4 GHz

  WiFi standards : 802.11n, 802.11b/g

  Transmission speed - 2.4GHz [Mb/s] : 300

  Security : WPA, WPA2, WPA3

  2.4GHz MIMO : 2 x 2

  Type of antenna : Detachable

  Integrated 4G/LTE radio part : Yes

  4G/LTE bands support : (1) 2100 MHz, (2) 1900 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (41) 2500 MHz, (28) 700 MHz

  Connectors and Interfaces

  WAN Ports : 1

  WAN speed : (1) 10/100Mbps

  RF connectors : (2) RSMA female, (3) SMA female

  LAN speed : (3) 10/100Mbps

  Serial port : RS-232, RS-485

  SIM slot : Yes

  SIM slots quantity : 2

  USB : Yes

  GPS modul : Yes

  Power

  Power over Ethernet : 9 .. 30V DC

  Power type : PoE, DC connector

  Max. power consumption [W] : 7

  Power via connector/terminal : 9 .. 30V DC

  Physical characteristics

  Design : Industry

  Buttons : Reset

  Operating temperature [°C] : -40 up to 75

  Weight [g] : 295

  Width [mm] : 110

  Height [mm] : 50

  Depth [mm] : 100

  Hardware

  CPU frequency [MHz] : 580

  Internal storage [MB] : 16

  RAM [MB] : 128

  Software

  Operating mode : 3G/4G Router

  Operating system : RutOS (OpenWrt based Linux OS)

  IPv6 support : Yes

  Default IP address : 192.168.1.1

  Default login and password : admin / (preset password, see label/engraving)
