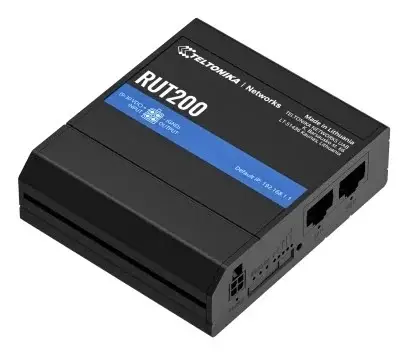

Teltonika RUT200 Industrial Cellular Router

Product description

RUT200 brings the best-rated features of the bestseller RUT240.

RUT200 is a compact industrial cellular router that provides reliable, mission-critical connectivity in rigorous conditions
common in industries like automation, transportation, and manufacturing.
This model is equipped with 4G LTE, Wi-Fi, and two Ethernet ports, making it ideal for quickly setting up
primary and backup connectivity with remote management capabilities.

Package contains

• Router RUT200
• 9 W PSU
• 2 x LTE antennas (swivel, SMA male)
• 1 x WiFi antenna (swivel, RP-SMA male)
• QSG (Quick Start Guide)



  Technical parameters

  LAN transmission technology : Ethernet 10/100

  LTE : Yes

  Wireless features

  Number of antennas : 3

  Wireless frequency : 2.4 GHz

  WiFi standards : 802.11n, 802.11b/g

  Security : WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

  Antenna gain [dBi] : 5

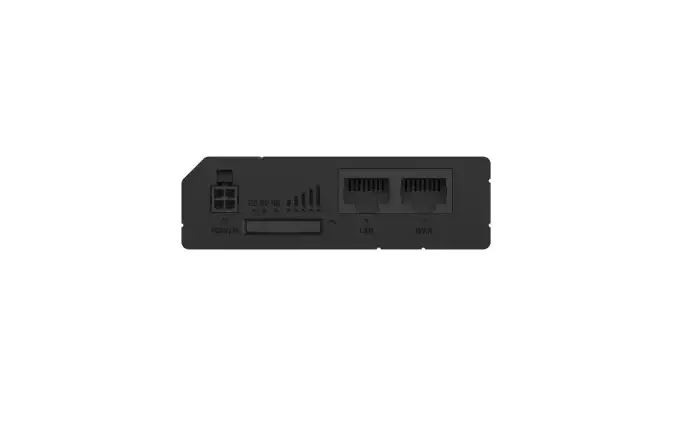

  Connectors and Interfaces

  RF connectors : (2) SMA male, (1) RP-SMA male

  LAN speed : (2) 10/100Mbps (1x LAN/WAN)

  SIM slot : Yes

  SIM slots quantity : 1

  Power

  Power over Ethernet : Yes

  Power type : DC connector

  Max. power consumption [W] : 6,5

  Power via connector/terminal : 9 .. 30V DC

  Physical characteristics

  Protection class : IP30

  Buttons : Reset

  Operating temperature [°C] : -40 up to 75

  Weight [g] : 125

  Width [mm] : 83

  Height [mm] : 25

  Depth [mm] : 74

  Hardware

  CPU : Mediatek MT7628

  CPU frequency [MHz] : 580

  Internal storage [MB] : 16

  RAM [MB] : 128

  Software

  Operating system : RutOS (OpenWrt based Linux OS)

  Default IP address : 192.168.1.1

  Default login and password : admin / admin01
